Overview

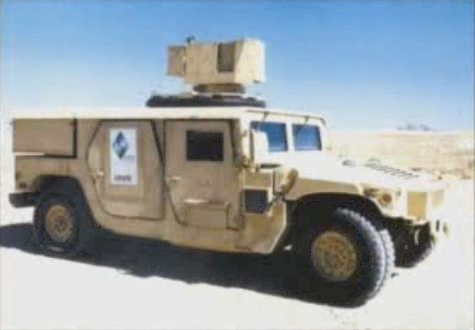

This entry covers gallery images that appear to show directed-energy laboratory apparatus — equipment used in the research and development of laser weapons, high-power microwave weapons, or related directed-energy technologies. The images' specific programme attribution, date, and location cannot be verified from the images alone.
Directed-energy laboratory apparatus encompasses a wide range of equipment, including laser devices, optical components, beam diagnostics, power supplies, cooling systems, and target chambers. The images are consistent with work conducted at numerous US military, national laboratory, university, and contractor facilities.
Types of Directed-Energy Laboratory Apparatus
Directed-energy research laboratories typically contain the following types of equipment:
Laser devices: The primary energy source, which may be a chemical laser (such as a hydrogen fluoride or deuterium fluoride laser), a solid-state laser (such as a diode-pumped solid-state laser or a fibre laser), a free-electron laser, or a gas laser. Each type has different characteristics in terms of power, wavelength, efficiency, and logistical requirements.
Optical components: Mirrors, lenses, beam splitters, and other optics that direct, shape, and combine laser beams. High-energy laser optics must be made from materials that can withstand high optical power without damage, such as copper mirrors, zinc selenide lenses, or specialised coatings.
Beam diagnostics: Power meters, beam profilers, wavefront sensors, and other instruments that measure the characteristics of the laser beam. These are essential for characterising laser performance and for diagnosing problems.
Power and cooling systems: High-energy lasers require substantial electrical power and active cooling. Laboratory facilities typically have dedicated power supplies (such as capacitor banks for pulsed lasers or high-power electrical feeds for continuous-wave lasers) and cooling systems (such as chilled-water loops or cryogenic systems).
Target chambers: Enclosed environments where laser beams are directed at target materials to study beam-target interaction effects. Target chambers may contain diagnostic equipment for measuring target damage, plasma formation, and other effects.
High-Power Microwave Apparatus
In addition to laser apparatus, directed-energy laboratories may contain high-power microwave (HPM) equipment. HPM weapons use intense microwave pulses to damage or disrupt electronic systems. HPM laboratory apparatus includes:
- Microwave sources: Devices that generate high-power microwave pulses, such as magnetrons, klystrons, vircators, and gyrotrons.
- Waveguides and antennas: Components that direct the microwave energy toward the target.
- Mode converters: Devices that convert the microwave output from one mode to another for efficient radiation.
- Target electronics: Equipment used to test the effects of HPM on representative electronic systems.
Declassification and Provenance
The gallery images are from a legacy compilation whose CIA-P2 catalog numbers are legacy identifiers and do not establish CIA authorship, declassification, or provenance. The images' presence in the compilation does not constitute evidence that the depicted apparatus is part of a CIA programme, a classified programme, or a specific named research effort.
The images should be treated as unverified photographs of directed-energy laboratory equipment of unknown programme attribution.
References
- Air Force Research Laboratory. "Directed Energy Directorate." AFRL.
- High Energy Laser Joint Technology Office. "HEL JTO Overview." Department of Defense.
- Hecht, Jeff. Beam: The Race to Make the Laser. Oxford University Press.
- Benford, James and Swegle, John. High-Power Microwaves. CRC Press.
