Overview
This entry covers gallery images that appear to show the system configuration of the Tactical High Energy Laser (THEL) Advanced Concept Technology Demonstrator (ACTD). THEL was a joint US-Israeli programme that developed and tested a ground-based chemical laser system for defence against short-range rockets and artillery. The ACTD designation indicates that THEL was a demonstration programme intended to validate the technical feasibility of laser air defence in a realistic tactical scenario.

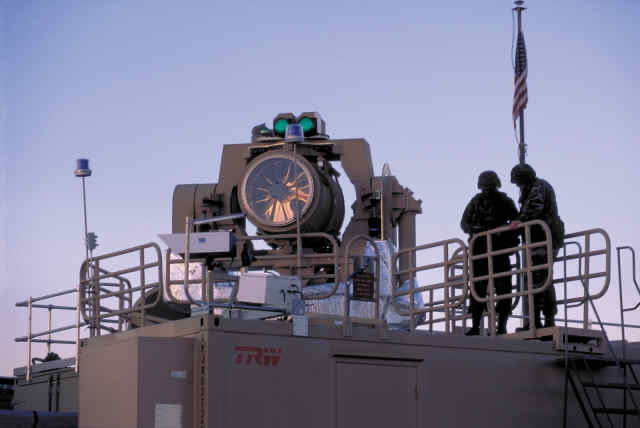

The images appear to show the THEL system in its test configuration at the High Energy Laser Systems Test Facility (HELSTF) at White Sands Missile Range, New Mexico. The THEL system consisted of multiple container-sized modules housing the laser, beam director, tracker, command and control, and chemical fuel systems.
THEL System Configuration
The THEL ACTD system was composed of several major subsystems, each housed in transportable modules:
Laser module: Contained the deuterium fluoride (DF) chemical laser, capable of producing several hundred kilowatts of continuous-wave infrared power at a wavelength of approximately 3.8 microns.

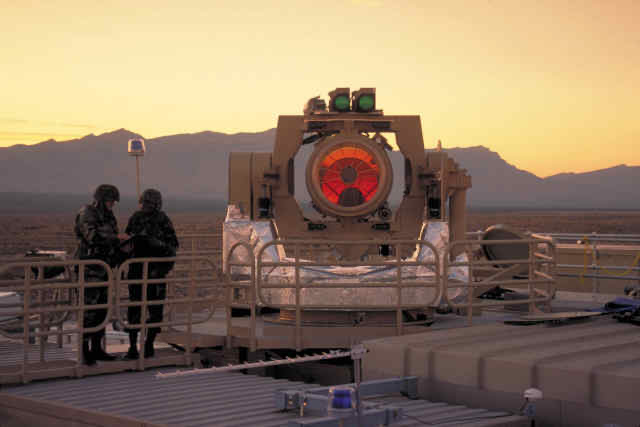

Beam director module: Contained the telescope-like optical system that focused the laser beam and directed it toward the target. The beam director incorporated adaptive optics for atmospheric compensation.
Tracker module: Contained the radar and optical tracking systems that detected incoming targets and provided pointing information to the beam director.
Command and control module: Contained the computer systems that managed target engagement, prioritised targets, and coordinated the laser beam.
Chemical fuel system: Storage and handling for the deuterium and fluorine reactants, along with exhaust management for the toxic byproducts of the laser reaction.
The modules were connected by cables and pipes, and the system required substantial setup time before it could be operational. The system was transportable (it could be moved by truck) but not truly mobile (it could not operate while moving).
ACTD Programme Structure
The Advanced Concept Technology Demonstrator (ACTD) programme was a Department of Defense mechanism for rapidly developing and demonstrating advanced technologies in a realistic operational context. ACTD programmes were intended to bridge the gap between laboratory research and full-scale acquisition, allowing military users to evaluate new technologies before committing to production.
THEL was designated as an ACTD in the late 1990s, with the goal of demonstrating the feasibility of laser air defence against the Katyusha rocket threat facing Israel. The ACTD structure allowed the programme to move quickly from development to testing, with the first successful rocket shootdowns occurring in August 2000 — less than three years after the ACTD designation.
Test Results
THEL ACTD testing at White Sands Missile Range produced several notable results:
- August 2000: First successful laser engagement of a Katyusha rocket in flight.
- August 2000: Simultaneous engagement of two Katyusha rockets.
- 2001: Successful engagement of artillery shells in flight.
- 2001: Multiple successful engagements in a single test sequence.
These results demonstrated that a laser weapon could track, engage, and destroy airborne targets in a realistic tactical scenario. However, the tests also revealed the system's limitations: the chemical laser's logistical requirements (fuel, exhaust handling, maintenance) were incompatible with true tactical deployment, and the system's effective range was limited.
Declassification and Provenance
THEL was a publicly acknowledged programme. Its existence, test results, and general system configuration were reported in open sources. However, specific technical details such as the exact beam power, effective range, and certain design parameters remain classified.
The gallery images are from a legacy compilation whose CIA-P2 catalog numbers are legacy identifiers and do not establish CIA authorship, declassification, or provenance. The images appear to show the THEL system configuration, but the precise dates and photographic provenance cannot be verified from the images alone.
References
- Northrop Grumman. "Tactical High Energy Laser (THEL)." Company press releases.
- US Army Space and Strategic Defense Command. "THEL ACTD Test Results." Public affairs releases.
- Defense Update. "THEL/MTHEL." International defense review.
- Hecht, Jeff. "Tactical Laser Shoots Down Rockets." Laser Focus World.
